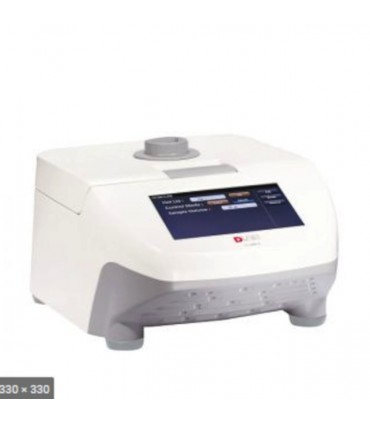

THERMOCYCLER DLAB

Thermocycler

Used for amplifying DNA and RNA samples by polymerase chain reaction (PCR) and for other temperature-sensitive reactions. Aluminum block capacity (included): 96 x 0.2 ml PCR tubes, 96-well plate or strips of 8 and 12 PCR tubes. Heating temperature range: 4-105 °C. Lid temperature range: 30-110 °C. Temperature display resolution: ± 0.1 °C. Temperature control accuracy [at 55 °C]: ± 0.3 °C. Temperature uniformity [at 55 °C]: <0.3 °C. Maximum heating/cooling rate: 3 ℃/sec.

Intuitive LCD touch screen for real-time monitoring of experimental temperature. Six high-performance Peltier structures for precision temperature control. Superior temperature control system with two options: program the block temperature or program the estimated temperature inside the tube. Height-adjustable thermal lid with sample anti-evaporation function. Power-on test function for quick internal diagnostics. Shutdown protection with automatic program recovery. User-defined file system: max. 30 segments of 99 cycles, max. 16 folders and 16 files in each folder. Automatic thermal lid shutdown function if module temperature is below 30 °C. Compatible with most universal PCR tubes and 96-well PCR plates.

Dimensions: 280 x 370 x 250 mm. 100-240 V / 50-60 Hz.
